Understanding Electrical Outlets: A Beginner-Friendly Overview

Electrical outlets are where we plug things in, such as lamps, chargers, or TVs. They're how we use the electricity in our walls. But have you ever wondered how the power gets to the outlet? That’s where electrical outlet wiring comes in. It connects wires behind the wall to the outlet, allowing your devices to receive power safely. Learning about outlets isn’t just for electricians—it’s helpful for any homeowner. When you understand how they work, you can make safer choices and maybe even fix small issues yourself.

Why Proper Wiring Is Critical For Home Safety

Wiring an electrical outlet the wrong way can cause big problems. It can lead to fires, shocks, or appliances breaking. That’s why it's so important to get the wiring right the first time. Wires inside the wall carry electricity. If they are not connected properly, that power can go to the wrong place. Over time, bad wiring can even wear down your outlets. When outlets feel warm or make a buzzing sound, that could mean trouble. Making sure everything is wired safely helps protect your home and your family.

Inside The Wall: What Makes Up An Electrical Outlet?

An outlet might look simple from the outside, but there's more to it. Inside, there are usually three wires: black, white, and green or bare copper. The black wire is the "hot" wire and usually connects to the gold screw. The white wire is neutral and connects to the silver screw. The green or bare wire is the ground, which keeps you safe if something goes wrong. These wires attach to the outlet, which is held in a box inside the wall. When installed correctly, everything works quietly in the background.

Tools And Safety Gear You Need Before Wiring An Outlet

Essential Tools:

• Flathead screwdriver



• Phillips screwdriver



• Wire strippers



• Voltage tester



• Flashlight (for working in dark areas)



Safety Gear:

• Insulated gloves



• Safety glasses



Important Reminder:

• Always turn off the power at the breaker box before starting any wiring work.





  Step-by-Step Guide: How To Wire An Electrical Outlet The Right Way

1. Turn Off the Power
   Go to your main breaker panel and switch off the power to the outlet you’re working on.



2. Test the Outlet
   Use a voltage tester to make sure the power is truly off. Always double-check for safety.



3. Remove the Outlet Cover
   Unscrew and take off the outlet’s faceplate using a screwdriver.



4. Pull Out the Outlet
   Gently pull the outlet out from the wall box to see the wires behind it.



5. Look at the Wires
   You’ll see three wires:



   • Black (hot)



   • White (neutral)



   • Green or bare (ground)



6. Strip the Wire Ends
   If the wires are not already stripped, use a wire stripper to remove about ½ inch of insulation.



7. Connect the Wires to the Outlet



   • Connect the black wire to the gold screw



   • Connect the white wire to the silver screw



   • Connect the green or bare wire to the green screw



8. Push the Outlet Back In
   Carefully fold the wires and push the outlet back into the wall box. Tighten the screws to secure it.



9. Attach the Cover Plate
   Screw the faceplate back on to cover the outlet.



10. Turn the Power Back On
    Go to the breaker panel and turn the power back on for that circuit.



11. Test the Outlet Again
    Use the voltage tester or plug something in to make sure the outlet works properly.



Understanding Outlet Wire Colors And What They Connect To

Wire colors help you know what each one does. The black wire is the hot wire and brings power in. It connects to the gold screw. The white wire is the neutral wire and carries power back out. It goes on the silver screw. The green or bare wire is the ground. It keeps everything safe in case of an electrical problem. If these wires are connected incorrectly, it can cause shocks or damage. Always double-check which color wire is going to which screw. Using an outlet wiring diagram makes this easier to understand.

Wiring Diagrams Made Simple: Visualizing The Connections

A wiring diagram is like a map for your outlet. It shows where the wires go. In a standard wall outlet, the diagram shows the hot wire going to the gold screw, the neutral to the silver screw, and the ground to the green screw. Some diagrams also show how to wire more than one outlet on the same circuit. This is called outlet-to-outlet wiring. Diagrams help you follow each step correctly. Even for beginners, reading a basic wiring diagram for outlet setups can make the job much easier and safer.

Outlet Types And Their Unique Wiring Requirements

Not all outlets are the same. Some have special wiring needs. GFCI outlets are used in kitchens and bathrooms. They protect you from shock. AFCI outlets stop fires by catching tiny sparks. Heavy-duty 20-amp outlets are used for big appliances. These outlets might have different wiring setups. Some need extra wires or different screw placements. A standard outlet uses three wires, but some outlets need four. Always check the label or use a wiring diagram for electrical outlet types. This helps make sure the outlet works right and follows the rules.

Common Mistakes When Wiring Electrical Outlets And How To Avoid Them

One big mistake is connecting the black wire to the wrong screw. The black wire should always go to the gold screw. Putting it on the silver screw can cause reverse polarity, which is dangerous. Another mistake is not tightening the screws enough. Loose connections can overheat. Some people forget to turn off the power before working. That’s very risky. Also, never mix up ground and neutral wires. Mixing them can shock you or damage your devices. Using an outlet plug wiring diagram or asking an expert like Sacconeelectric can help you avoid these problems.

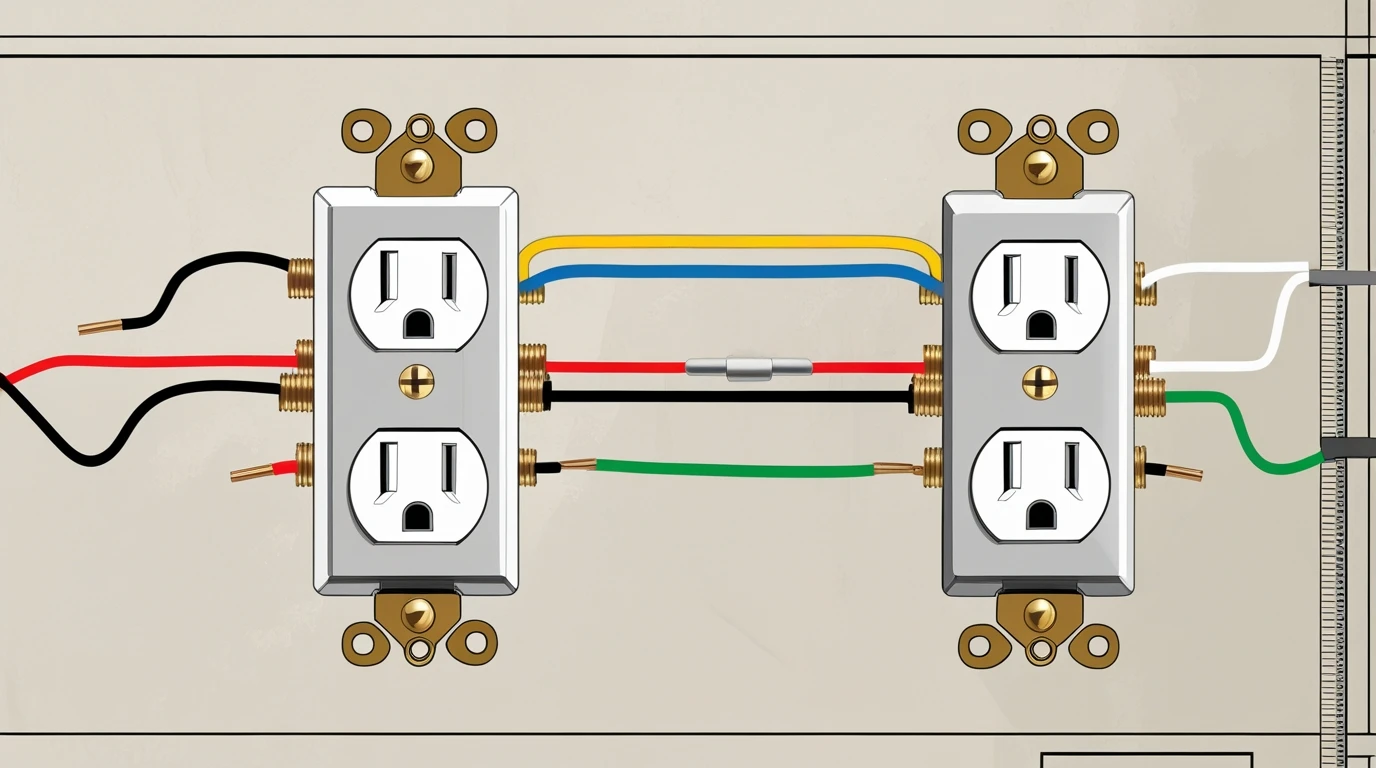

Wiring Multiple Outlets: From Outlet To Outlet Safely

When you need to wire more than one outlet, it’s called series wiring or daisy-chaining. This means connecting wires from one outlet to the next. First, connect the main power wires to the first outlet. Then, use a second set of wires to go from that outlet to the next one. Always match black to black, white to white, and ground to ground. Use a wiring diagram wall outlet setup to guide you. Don’t overload the circuit. Too many outlets on one line can cause tripped breakers. Keep your layout safe and simple.

Trusted Outlet Wiring Help In Coeur d'Alene, ID: Why Homeowners Rely on sacconeelectric

In Coeur d'Alene, ID, many homes depend on reliable electrical systems. Outlet wiring may seem simple, but even small mistakes can lead to big issues. That’s why homeowners turn to sacconeelectric. Their team brings years of hands-on experience, following all safety codes and standards. Whether it’s replacing an old wall outlet or installing new ones with proper electrical outlet wiring, they make sure it’s done right. From the first screw to the final test, they handle every step with care and precision. Trust is built through work done safely, clearly, and with your family in mind.
